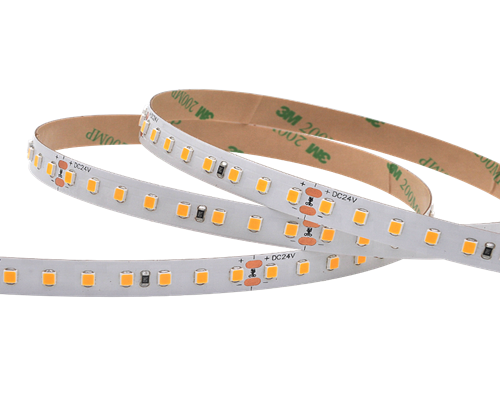

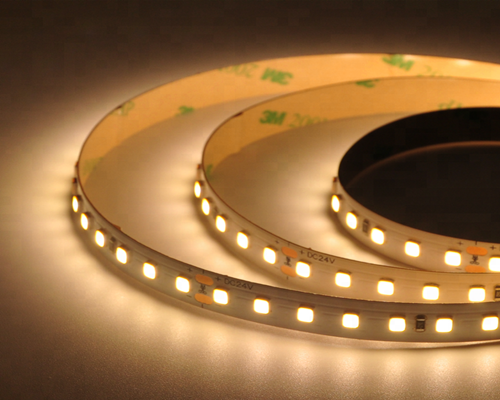

YT-F2835-144xx-24V

    2835 LED strip 144pcs/m

    Epistar chip can max drive @60mA

    SDCM≤3,one Bin delivery

    Strong PCB with double layer

    3 years warranty


    Specifications


    Length: 5m/roll                                                                        PCB:  10mm* 2Oz   (6mm for choose)


    Cutting Unit: 6pcs/4.17cm@24V                                            Lm/m:   2880-3740lm  @60mA


    Input Voltage: 24V DC                                                           CRI:   >  90


    Typ.power:   Max 14.4W/m @30mA                                      CCT: 2300K/2700K/3000K/4000K/6000K/R/G/B

                        Max 28.8W/m @60mA

    LED Qty: 144pcs LED/m                                                        IP Process: IP20/IP65/IP68 @30mA

                                                                                                  IP20@60mA  (install in Aluminum profile use)
