C-2P-8-1 6/8/10mm

    COB and high density strip connector

    Stable LockTM design , firm connection, pull value >30N

    UL Listed 2468/1007 wire, AWG20

    Work Voltage: DC3-30V  Max current =5A

    PA66 , UL94-0 high quality plastic and copper with silver

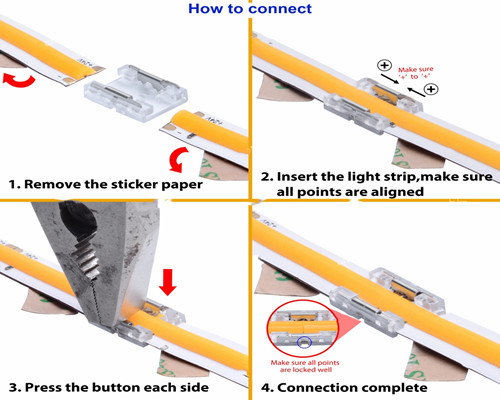

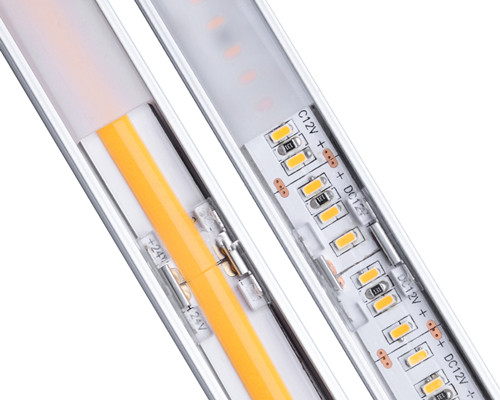

    Easy to install,mini design for aluminum profile

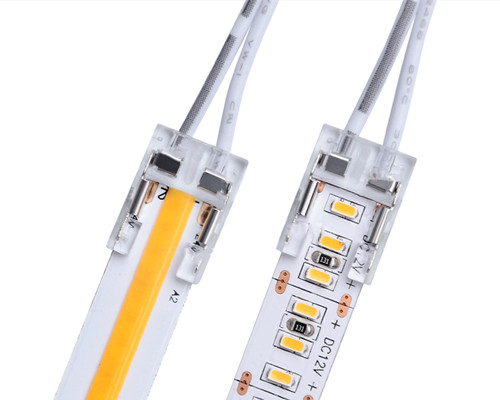

    FPC, 6mm/8mm/10mm single color led strip

    Competitive price, the more items view specification list

    Specifications

    C-2P-10-1                     connector with wire                                  10mm width   15cm wire

    C-2P-10-2                      both connectors with wire                       10mm width   15cm wire

    C-2P-10-3                      two side connnectors                              10mm width

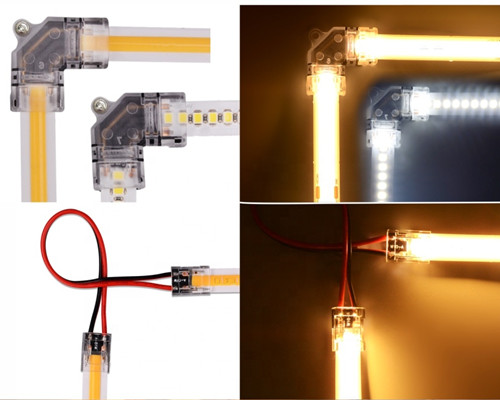

    C-2P-10-4                      both connectors with L wire                     10mm width   L 90 degree

    Note: have 6mm/8mm/10mm choose
